MainWP version 4.5 introduced an enhanced encryption system for storing third-party API keys and login details. This encryption follows industry security standards to protect sensitive data stored in your MainWP Dashboard.
What You’ll Learn
- How MainWP encrypts API keys and credentials
- What the encryption process involves
- What data is and isn’t covered by this encryption
Scope of Encryption
MainWP encrypts sensitive data stored in the Dashboard:
| Protected | Examples |
|---|
| Extension API keys | Backup service credentials, monitoring API keys |
| Login credentials | Third-party service logins stored in extensions |
| Dashboard secrets | Internal authentication tokens |
This encryption applies to data stored in the MainWP Dashboard. It does not cover data created by third-party plugins on child sites. For example, MainWP encrypts the API key used by a backup extension, but does not encrypt the backup files created on child sites.
Encryption Components
The encryption process uses these security measures:
| Component | Description |
|---|
| IV (Initialization Vector) | 16-character random string ensuring unique encryption |
| Authentication data | Validates data integrity |
| AES GCM encryption | Galois Counter Mode via PHPSecLib |
| PHPSecLib Random class | Cryptographically secure random string generation |
| Key File | Encryption key stored separately from encrypted data |
What is AES GCM
AES GCM (Galois Counter Mode) is a stream cipher mode for AES encryption. Key characteristics:
- Low latency: Fast encryption and decryption
- No padding required: Stream cipher design
- Authenticated encryption (AEAD): Verifies data hasn’t been tampered with
- Authentication tag: Each encryption produces a MAC (Message Authentication Code)
With AES-GCM, MainWP uses an encryption key and message to generate cipher text, a random nonce, and an authentication tag.

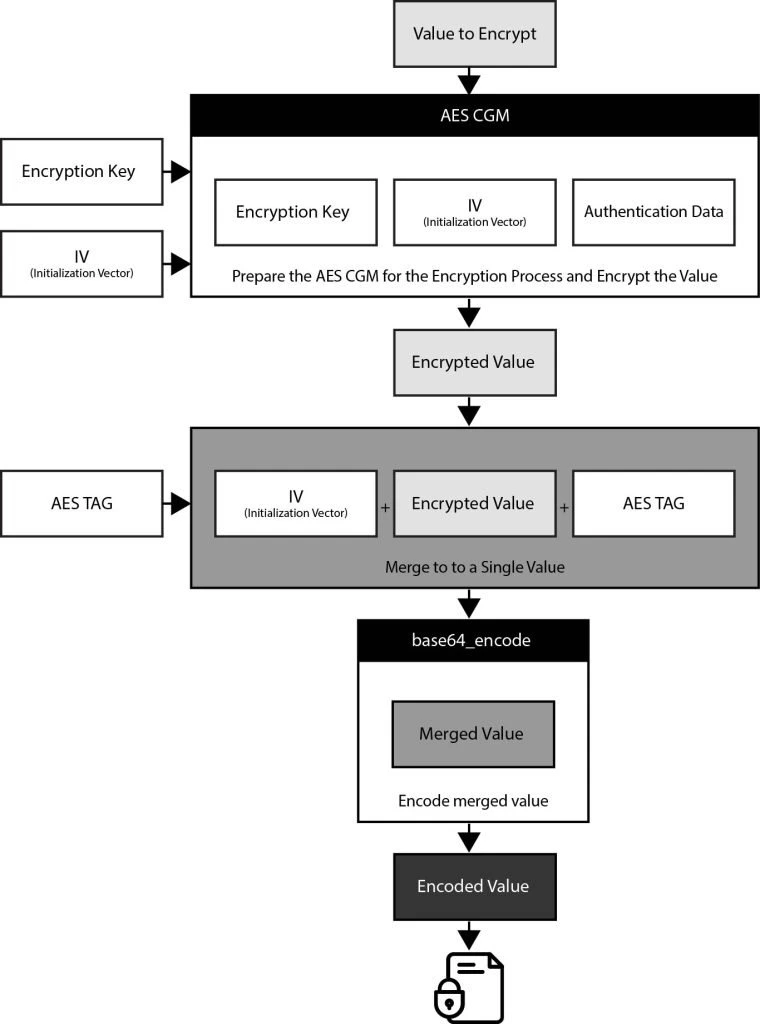

Encryption Workflow
The encryption process follows these steps:
| Step | Action |
|---|
| 1 | Generate 32-character encryption key using PHPSecLib Random class |
| 2 | Generate 16-character IV (Initialization Vector) using PHPSecLib Random class |
| 3 | Initialize AES GCM encryption with the key, IV as nonce, and authentication data |
| 4 | Encrypt the value (API key or credential) |
| 5 | Generate AES authentication tag |
| 6 | Merge IV + encrypted data + authentication tag |
| 7 | Base64 encode the merged value and save to database |
| 8 | Save encryption key to separate Key File |
| 9 | Store Key File reference in database |
Security Benefits
This design provides multiple layers of protection:
- Separation: Encryption key stored separately from encrypted data
- Integrity: Authentication tag detects tampering
- Uniqueness: Random IV ensures identical values produce different ciphertexts
- Industry standard: AES-256 GCM is widely trusted for secure data storage
